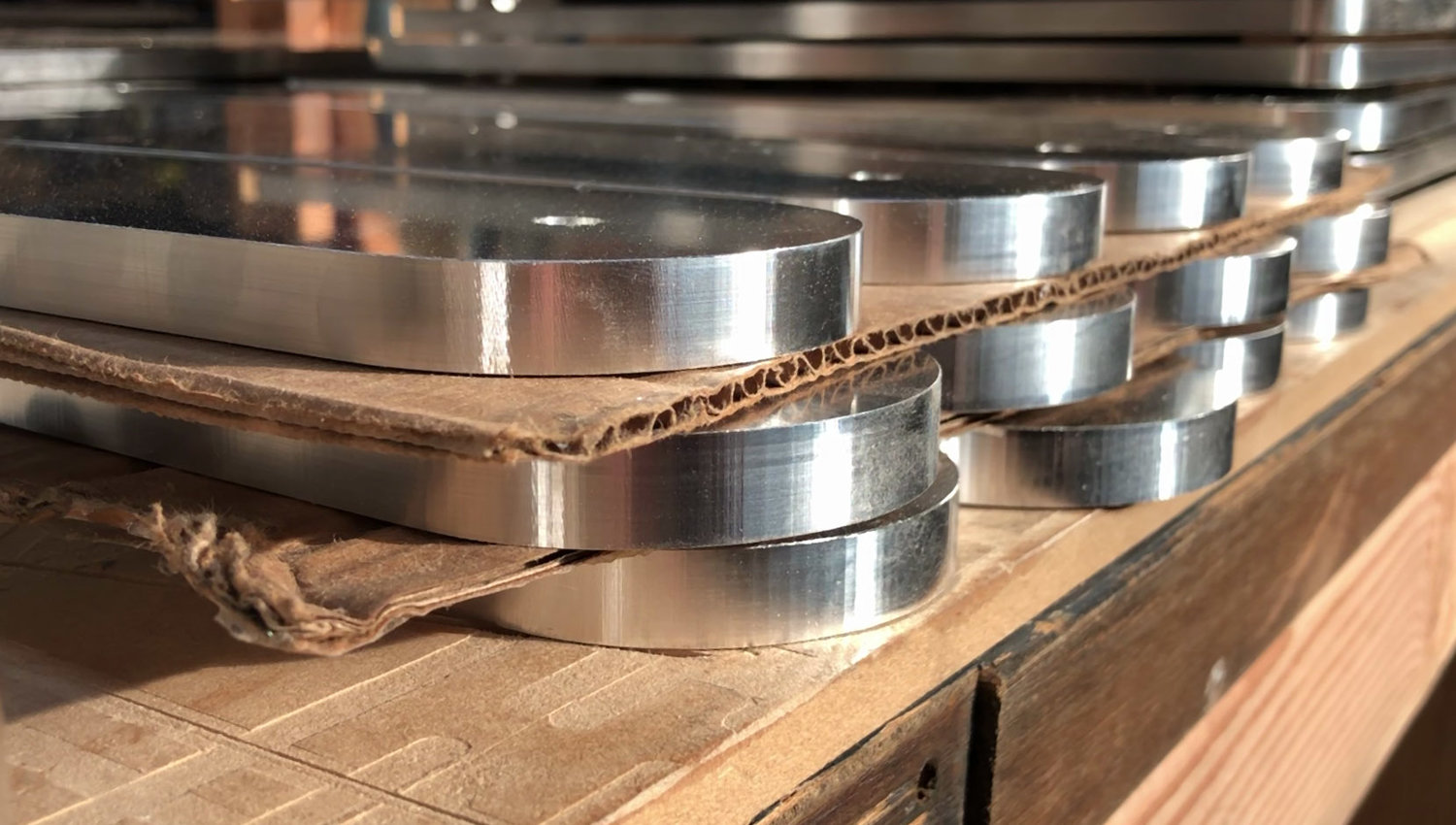

Aluminum is one of the most commonly used materials in CNC routing. This is due to its great machinability, corrosion resistance, and strength-to-weight ratio. Aluminum CNC router parts are found in various industries like aerospace, automotive, etc. They can even be used to produce decorative elements. However, manufacturers must consider specific factors during the routing process to achieve high-quality parts with a good finish. Some of these factors are selecting the right tool, adjusting machining parameters, and using the right finishing techniques. This guide will explain what CNC routing is and the key tips to improve the look and quality of aluminum CNC router parts.
What Is CNC Routing?

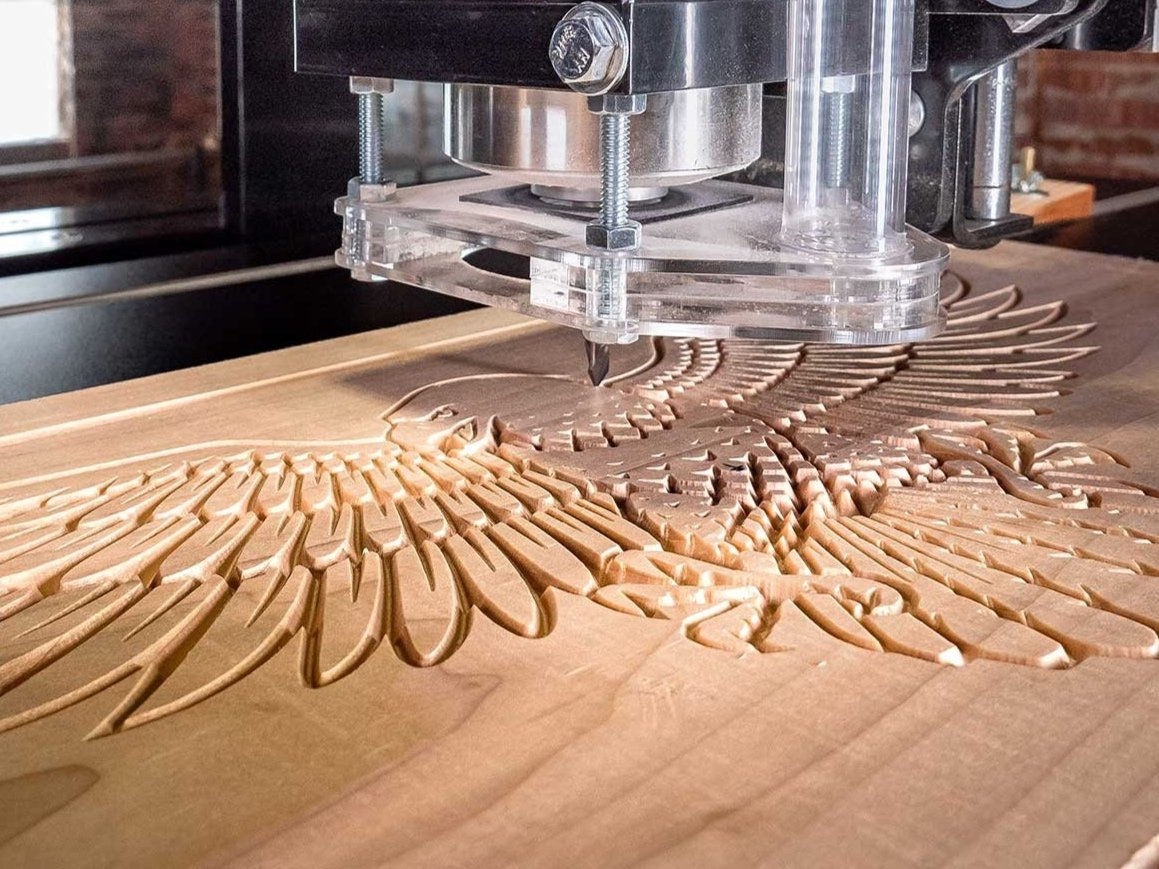

CNC routing is a complex manufacturing process using automated machines to precisely cut, shape, and engrave materials. It is commonly used across industries to work with materials like wood, plastics, composites, and metals like aluminum. The CNC router follows a digital design created using CAD software. It is then converted into instructions for the machine using CAM software. These instructions guide the router’s cutting tool along multiple axes (X, Y, and Z). However, more advanced routers can operate on five or more axes for more complexity.
A CNC router comprises several key components: a spindle that holds the cutting tool, motors that control movement, and a computer system that directs the tool’s path. The machine can cut carvings by moving the cutting tool up and down, side to side, and back and forth. This allows it to create even the most complex designs with high accuracy. Automation in CNC routing has several advantages, like precision, repeatability, and efficiency. CNC routers can consistently produce identical parts with minimal variation. This makes them essential in industries where accuracy is needed.

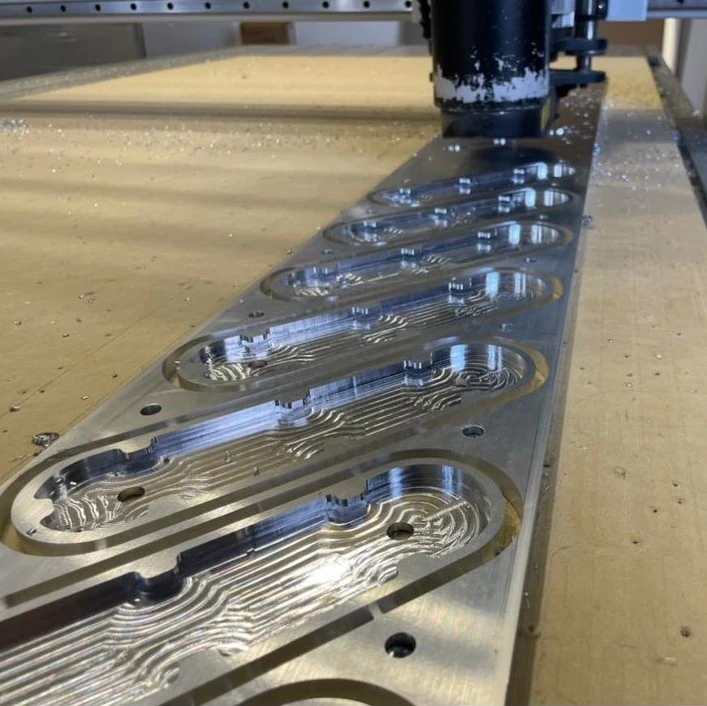

CNC routers are especially effective when it comes to aluminum. Aluminum is softer than steel yet stronger than plastic, making it an ideal material for various industrial components. CNC routers can achieve the fine details and tight tolerances required for aluminum parts. They ensure structural integrity and aesthetic appeal. However, achieving high-quality results with aluminum requires careful attention to machining parameters like spindle speed, feed rate, and tool selection. These factors must be optimized to avoid common issues such as material chatter, tool wear, and surface imperfections.
After the routing process, additional steps like deburring, polishing, and surface finishing are often necessary to enhance the appearance and quality of aluminum parts. Techniques like anodizing not only improve the look of the part but also increase its durability and resistance to corrosion.
Tips for Improving the Look and Quality of Aluminum CNC Router Parts
Achieving high-quality CNC router for aluminum parts requires careful attention to machining and post-processing techniques. Aluminum is an excellent material for CNC routing and presents unique challenges such as tool wear, material chatter, and surface finish imperfections. Below are some key tips to enhance the appearance and overall quality of aluminum CNC router parts:
Selecting the Right Tool
Selecting the proper cutting tools is essential for aluminum machining. Carbide tools are often recommended for aluminum due to their hardness and resistance to wear. High-speed steel can also be effective. However, carbide tools offer longer life and better performance when dealing with harder aluminum alloys.
Tools with specialized coatings, like titanium nitride or diamond, can reduce friction and improve surface finish. It’s also important to choose tools with the appropriate flute count. Typically, two or three flutes work best for aluminum, allowing for efficient chip evacuation.
Adjusting Machining Parameters
The right combination of spindle speed, feed rate, and depth of cut plays an important role in producing smooth, precise parts. A higher spindle speed is essential to prevent tool loading and achieve a cleaner cut when machining aluminum. A faster feed rate can also help maintain surface quality. However, it must be balanced to avoid material chatter or tool wear. Testing different parameter combinations on scrap material can help find the ideal settings for specific projects.
Proper Lubrication and Cooling
Aluminum tends to stick to cutting tools. This can cause poor surface finishes and rapid tool wear. Proper lubrication is essential to keeping both the tool and the material cool. Coolants prevent the aluminum from sticking to the tool and help reduce heat. Keeping the cutting environment cool ensures cleaner cuts and longer tool life, improving the part’s quality.
Use Sharp and Well-Maintained Tools
A dull or damaged cutting tool will negatively affect the final part’s look and structural integrity. Sharp tools are important for achieving clean cuts and smooth finishes, especially when working with aluminum. Constantly checking tools for wear and replacing them as needed can make a difference in the appearance of CNC router parts. You can also sharpen tool if possible. It will help to extend the tool’s lifespan and ensure consistent quality.
Effective Chip Management
Aluminum produces large amounts of chips during machining, which can accumulate and interfere with the cutting process. These chips can get stuck in the cutting area and cause scratches, dents, or uneven finishes on the surface of the workpiece. Introducing a strong chip reduction system, like using compressed air or vacuum systems, can prevent this issue. Ensuring that chips are constantly cleared away will improve surface quality and help maintain precision throughout the cutting process.
Reduce Vibration and Material Chatter
Vibration or chatter during machining can leave visible marks on the surface of aluminum CNC projects and impact dimensional accuracy. Ensure that the workpiece is well clamped, and the toolpath is smooth to reduce vibration. Using shorter cutting tools and adjusting the depth of the cut to lighter passes can help reduce chatter. You can also experiment with spindle speed and feed rate adjustments to reduce unwanted vibrations affecting the part’s appearance.
Post-Processing Techniques
After machining, additional finishing processes can greatly enhance the look and durability of aluminum parts. Deburring, for example, is essential to remove sharp edges and residual material that might be left behind. Polishing the aluminum can create a smoother, more reflective surface, while techniques like bead blasting can give it a uniform matte finish. Anodizing the aluminum can add aesthetic color and increase corrosion resistance for a more permanent and visually appealing finish.
Regularly Calibrate Your CNC Router
Maintaining the accuracy of your CNC router is essential to achieving high-quality parts. Regularly calibrating the machine ensures that all movements are precise. This is particularly important when working with materials like aluminum. Misalignments in the machine can result in poor cuts, inaccuracies, and a reduced finish. Scheduled maintenance, including checking the router’s axis movements and tool positioning, will help guarantee the production of consistently high-quality parts.
Conclusion
Improving the look and quality of aluminum CNC router parts requires an approach that combines careful tool selection, optimized machining parameters, and proper post-processing techniques. Aluminum is versatile, but achieving high-quality results requires attention to detail throughout the CNC routing. Each step plays an important role in the outcome, from ensuring sharp tools and effective chip management to utilizing cooling systems and applying finishing techniques like polishing or anodizing.
Follow the tips explained in this guide to can enhance your aluminum CNC parts’ aesthetic appeal and structural integrity, ensuring they meet industry standards and customer expectations.
