You’ve probably come across both terms. Maybe on a product label. Maybe at the hardware store. One promises to “slow heat transfer,” the other claims to “reflect radiant energy.” But what’s the real difference between an insulator and a radiant barrier? And which one should you actually be using?
Here’s the truth: they’re not the same thing, and choosing the wrong one can leave you with a hot attic, a cold garage, and a higher energy bill than you need to be paying.
Let’s clear it up.
How Insulation Actually Works
Conventional insulation, whether it’s fiberglass, mineral wool, or spray foam, is designed to slow the movement of heat. It relies on air pockets or dense material to resist two specific types of heat transfer: conduction and convection.
Conduction occurs when heat moves through a material. Think of a metal spoon heating up in a hot cup of tea. Convection involves the movement of air carrying heat with it, such as warm air rising to your attic in summer. These traditional materials trap air to reduce this flow, keeping inside temperatures more stable.
The effectiveness of insulators is usually measured in R-value. The higher the number, the greater the resistance to conductive heat. This makes them essential for insulating walls, floors, and ceilings in both hot and cold climates.
However, what these products don’t block very well is radiant heat, which accounts for a significant portion of energy loss, especially in attics and garages.
What a Radiant Barrier Does Differently
Here’s where a radiant barrier steps in. Unlike insulation that resists heat flow, a radiant barrier reflects it. It’s usually made of highly reflective foil, often aluminum, that can bounce radiant energy away from a building’s envelope before it ever has a chance to warm up the interior space.
Radiant barriers do not trap air or slow heat through mass. Instead, they work like a mirror reflecting sunlight and radiant heat away from the house. They’re typically installed facing an open air space, such as the underside of a roof or on top of attic insulation.
When installed correctly, a radiant barrier can reflect up to 97 percent of radiant energy. This is particularly effective in hot climates where keeping solar heat out of your attic can dramatically reduce air conditioning costs.
It’s not a replacement for insulation but a complementary solution that addresses what insulation does not handle well.

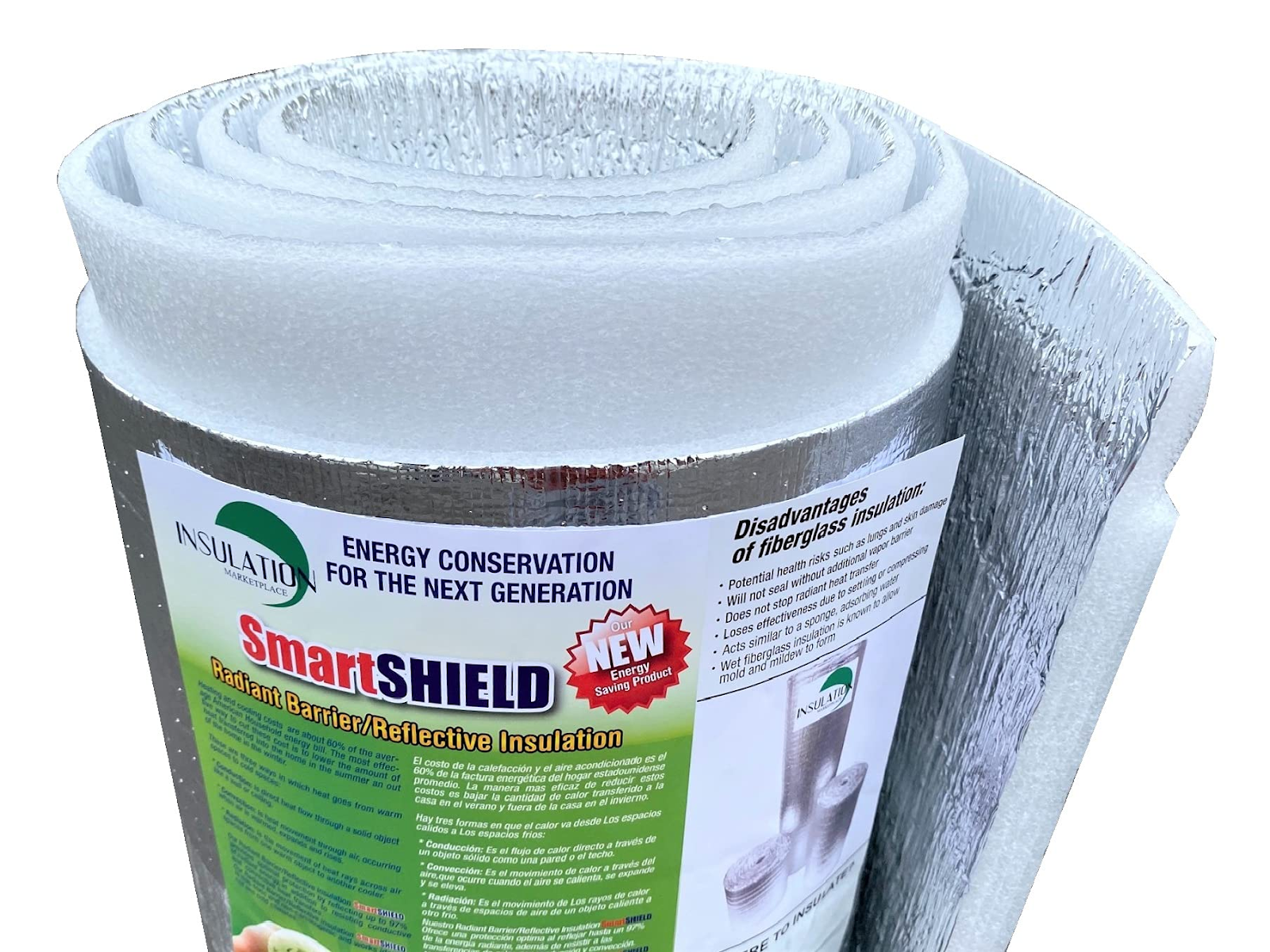

Reflective Insulation Rolls: Best of Both Worlds?
Here’s where things get interesting.
Reflective insulation rolls combine the best of both worlds. Inside, you’ve got foam or air bubble layers that resist conduction and convection. On the outside? Reflective foil that handles radiant heat. So instead of picking one side, you get both in a single roll.
That’s why reflective insulation rolls are showing up everywhere — garages, RVs, metal sheds, even inside van builds. They’re lightweight, easy to install, and they do more than traditional insulation alone.
If you’re DIYing a garage or outfitting a workspace, these rolls let you avoid choosing between protection from heat loss and radiant heat. You get both.
Performance in Summer and Winter
The climate plays a big role in deciding whether you need one, the other, or both. Radiant barriers are most effective in hot climates. If your attic bakes under summer sun, installing a radiant barrier on the underside of your roof decking can substantially cut down the heat that seeps into your living space.
In winter, radiant barriers are not as effective simply because there’s less radiant heat to reflect. However, they can still be helpful in garages and outbuildings where heat loss from radiant exposure may still occur, depending on lighting, machinery, or the structure’s orientation.
Traditional insulation is essential in both summer and winter because it slows down all types of heat transfer. However, without a radiant barrier, it still absorbs some radiant energy before resisting it.
Reflective insulation rolls help bridge this seasonal performance gap, offering year-round energy benefits by covering multiple forms of heat movement in a single solution.
Practical Installation Differences
Another way to compare the difference between an insulator and a radiant barrier is how each one is installed.
- Insulators typically need to be placed within walls, attics, or floors, often between studs or joists. Installation can involve cutting, stuffing, or blowing material into cavities. It can be messy and may require protective gear.
- Radiant barriers are simpler in some ways. They are installed facing an open space, such as stapled to the underside of roof rafters. They must not be covered up, or they lose their effectiveness.
Reflective insulation rolls are the most versatile here. These can be unrolled, cut, and taped into place without requiring professional tools or complex prep. That makes them a popular option for DIY users who want to improve insulation without tearing down walls.
Cost Efficiency and Return on Investment
Traditional insulators have an upfront cost based on thickness and type. Spray foam tends to be the most expensive, but also offers high R-values. Radiant barriers are generally affordable and quick to install, offering a strong return on investment in hot climates.
Reflective insulation rolls sit in the middle in terms of price, but they’re budget-friendly when considering the installation cost, time savings, and all-in-one functionality.
Whichever path you take, the goal is clear: prevent unwanted heat from entering in summer or escaping in winter. By using the right materials in the right places, you’ll lower your energy bills and improve your home’s comfort. Need help figuring out whether a radiant barrier or reflective insulation roll makes more sense for your garage, attic, or next project? Head over to InsulationMarketPlace. You’ll find solid options, no middleman markups, and fast shipping that actually means fast. Whether you’re tackling a weekend DIY or managing a full build, they’ve got what works.
