As the demand for cleaner, more efficient energy infrastructure continues to grow worldwide, High Voltage Direct Current (HVDC) technology has emerged as a game-changer in the field of power transmission. HVDC systems, combined with specialized electrical equipment, enable reliable, long-distance delivery of electricity with lower losses compared to traditional AC systems. From renewable energy integration to intercontinental grid connections, HVDC is reshaping the energy landscape.
What Is HVDC?
High Voltage Direct Current (HVDC) refers to the transmission of electricity using direct current at very high voltages—typically above 100 kV. Unlike alternating current (AC) systems, HVDC transmission maintains a constant voltage polarity, which reduces energy losses caused by inductance and capacitance over long distances.
Because of this, HVDC is especially beneficial for transmitting electricity:
- Across long distances (hundreds to thousands of kilometers)
- Through submarine cables connecting islands or countries
- Between asynchronous AC grids operating at different frequencies
- From remote renewable energy sources like offshore wind farms to urban centers
By minimizing transmission losses and improving grid stability, HVDC technology helps enable a more sustainable, interconnected energy future.
Common HVDC Electrical Equipment
Building and operating an HVDC system requires a wide range of specialized electrical equipment, each designed to perform a critical function in maintaining system safety, reliability, and performance.
1. HVDC Converters
HVDC converters are the heart of the system. They convert AC to DC at the transmission side (rectifiers) and DC back to AC at the receiving side (inverters). Two main converter technologies are used today:
- Line-Commutated Converters (LCC): Traditional technology using thyristors; efficient but requires strong AC systems.
- Voltage Source Converters (VSC): Modern technology using IGBTs; highly flexible, suitable for weaker grids and renewable energy.
2. DC Circuit Breakers
DC circuit breakers are critical for system protection. Unlike AC breakers, DC breakers must extinguish current without relying on a natural zero crossing. Modern designs use advanced mechanical, hybrid, or fully solid-state technologies to interrupt DC faults within milliseconds, protecting both equipment and personnel.
3. HVDC Contactors
HVDC contactors are electrically-controlled switches used to connect and disconnect parts of a DC circuit under load. They are vital in modular HVDC systems, enabling sectionalizing, maintenance, and emergency shutdowns without damaging other components.
4. DC Shunt Resistors
DC shunt resistors provide precise current measurement by offering a known, stable resistance across which a voltage drop can be measured. In HVDC systems, they are used for monitoring and controlling current flow, helping to detect overloads or faults quickly.

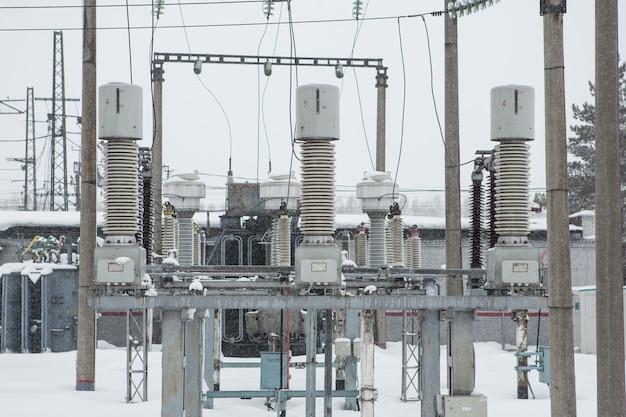

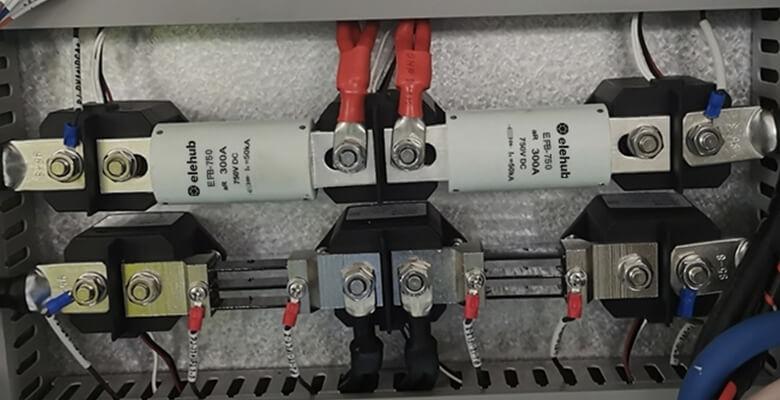

5. DC Fuses
DC fuses provide overcurrent protection by melting under excessive current conditions, breaking the circuit. Because DC arcs are harder to extinguish than AC arcs, HVDC fuses are designed with special arc-quenching materials and structures to ensure safe operation.
6. Connectors and Switches
HVDC systems also require high-reliability connectors and manual or automated switches. These components must be capable of handling high voltages and currents without degradation, providing flexibility for system reconfiguration, maintenance, or expansion.
7. DC Surge Protection Devices (SPDs)
Surge protection devices are crucial for protecting HVDC equipment against transient overvoltages caused by lightning strikes, switching operations, or faults. HVDC SPDs are specially designed to operate under steady DC bias without deteriorating performance, ensuring continuous protection.
8. Smoothing Reactors
Smoothing reactors are inductors installed in the DC link to minimize current ripple and improve the quality of the transmitted current. They help stabilize the system and reduce mechanical stresses on equipment.
9. Filters
Both AC and DC sides of an HVDC system can generate harmonic distortion during conversion. Filters—either passive or active—are deployed to remove unwanted frequencies, maintaining power quality and preventing interference with other systems.
10. DC Cables
For overhead lines, underground networks, and especially submarine applications, specialized HVDC cables are used. These cables feature robust insulation systems to withstand constant high voltage and environmental stresses over decades of operation.
11. Surge Arresters
Installed across the network, surge arresters protect critical HVDC assets from switching surges and lightning strikes. They divert excess energy safely to the ground without allowing it to reach sensitive equipment.
Why HVDC Matters More Than Ever
The global energy transition relies heavily on the benefits offered by HVDC technology:
- Long-Distance Efficiency: HVDC reduces transmission losses by up to 50% compared to AC over long distances.
- Seamless Grid Interconnections: HVDC links can bridge asynchronous grids with different operating frequencies, promoting energy trading and stability.
- Enabling Renewables: Offshore wind farms, remote solar installations, and large hydroelectric projects depend on HVDC to deliver clean energy to demand centers.
- Urban Development: Underground HVDC systems are being used to feed major metropolitan areas without the visual and spatial impact of overhead lines.
Moreover, modern HVDC systems using VSC technology can offer “black start” capabilities, helping restore power grids after major blackouts. Electrical equipment from reliable DC electrical components manufacturers carries a lot in modern HVDC systems and maintains their working.
Final Thoughts
High Voltage Direct Current transmission isn’t just a niche technology anymore—it’s rapidly becoming the backbone of tomorrow’s sustainable, interconnected power systems. Behind every efficient HVDC link stands a sophisticated array of electrical equipment, from converters and circuit breakers to surge protectors and contactors.
Whether you are planning a renewable energy project, exploring grid modernization, or investing in next-generation infrastructure, understanding HVDC and its specialized equipment is crucial.
For those seeking expert solutions in HVDC systems and components, working with experienced suppliers and manufacturers can ensure long-term success, reliability, and efficiency.
